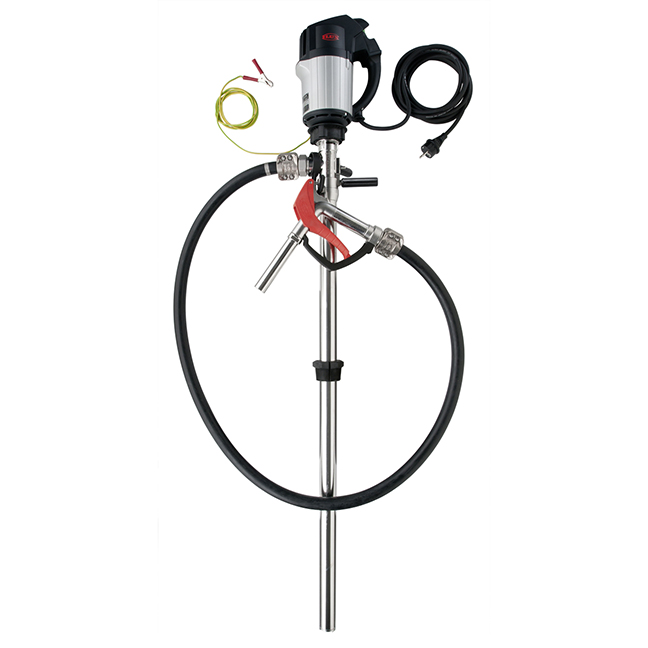

Liquid Saver Kit
Pre-assembled pump kit for 99.98 % drum emptying. Due to integrated backflow stop less than 0.02 gal residual amount in 55 gal drum possible. For pumping thin media out of 55 gal drums (immersion length 1000 mm) or IBCs (mmersion length 1200 mm). Comprising drum pump F 425 with mechanical seal, outer tube in stainless steel, commutator motor F 460, hose, hand nozzle and compression gland. Can also be used in hazardous areas.
Product attributes
- Pump with mechanical seal
- Switch lever to close the backflow valve / foot valve
- Pulsation-free transfer
- Transfer against closed valve (e.g. hand nozzle) possible
- Radial shaft sealing ring prevents intrusion of vapours and liquids into the coupling area
- Less than 0.02 gal residual amount left in 55 gal drum
- Universally and flexibly applicable
- Reduction of cleaning and waste disposal costs
- Optimal use of fluids
- No loss of medium when taking the pump from drum to drum
- Stainless steel version can be used in hazardous area
Benefits
- Flow rate: max. 30 GPM (115 l/min)
- Delivery head: max. 26 feet
- Viscosity: min. 1 cPs - max. 600 cPs
- Outer tube diameter: max. 41 mm
- Immersion length: 1000, 1200
- Materials outer tube: Stainless steel
- Media/Fluids: Petroleum products, Highly flammable media, Solvents, Fuels
- Seal: with mechanical seal
- Container: Drums, IBCs
- Drum pump F 425 Ex S-41/34 in stainless steel
- Commutator motor F 460 Ex, 230 Volt, 50 Hz, 460 Watt
- Universal hose DN 21, 2 m long
- Hand nozzle stainless steel
- Compression gland polypropylene (PP) conductive
Pump kits brochure
Drum and container pump brochure
EC Declaration of Conformity Drum Pumps
EC Declaration of Conformity Motors
All high-grade and dangerous media:
Petroleum, diesel, heating oil, hydraulic oil, engine oil, motor oil, gasoline, formic acid (85 %), ethyl glycol, petroleum, MEK (methyl ethyl ketone = butanone), octane, ethanol, methanol, butanol, acetan, toluene, isobutanol, propanol, xylene, urea solutions, white spirit
