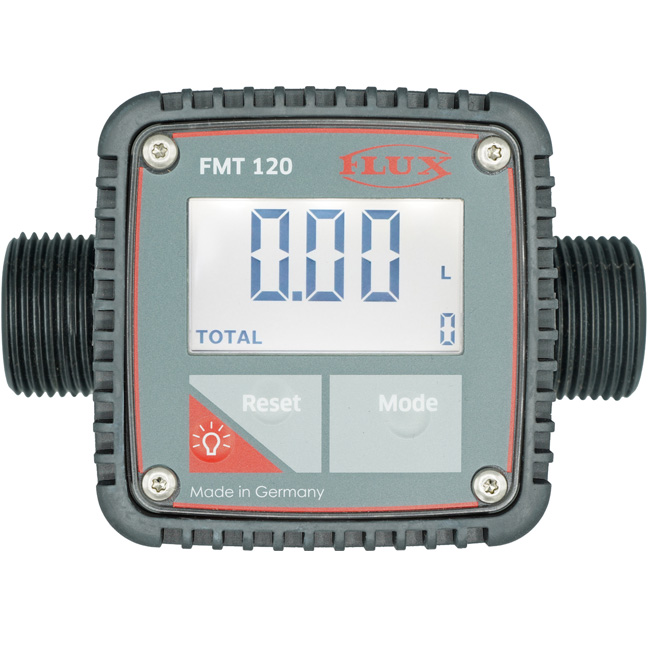

FMT 120

Flow meter for 1 - 31 GPM (5 - 120 l/min)

Branch: IndustryBranch: Surface technologyBranch: PetrochemistryBranch: AgricultureBranch: Water treatmentBranch: Paints and lacquersBranch: Chemistry
  • .

The FLUX flow meter FMT 120 works on the turbine wheel principle and is an economical alternative to our flow meters FMO and FMC / FMJ. The FMT 120 is easy to handle and allows fast and safe filling of media. Suitable for use with low viscosity, not flammable liquids together with our JUNIORFLUX and COMBIFLUX pumps.

Product attributes

  • Electronic flow meter with illuminated, digital display for flowing liquids according to the measuring principle of a
    turbine wheel meter
  • Two-line LED display shows the current dispensation values and the total stored volume or 8 partial stored volumes
  • Display can be mounted adjusted to the viewing angle or moved in the assembled state
  • Symmetrical measuring chamber for use in all directions of flow
  • Suitable for diesel / heating oil, AdBlue®, radiator antifreeze and water
  • Fast and secure filling of media
  • User-friendly operation
  • Fast and safe to calibrate

Technical Data

  • Flow rate: min. 1.3 - max. 31 GPM (5 - 120 l/min)
  • Filling accuracy: +/- 1%
  • Operating pressure: max. 10 bar
  • Viscosity: min. 0.8 cPs - max. 40 cPs
  • Media/Fluids: Aggressive media, Non-flammable media, Neutral media, Thin media
