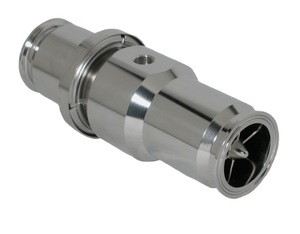

HM Turbine Flow Meter

Sanitary turbine flow meter to measure the clear liquid flow

Product attributes

Process device features:

  • IP 66 Enclosure suitable for wash down environments
  • Mobile and compact
  • Stainless steel construction
  • Electronics and battery are protected against moisture
  • Two base options to fit multiple pallet sizes
  • Fits a wide array of drums sizes
  • For use with aseptic liners
  • Process device for compressed-air motors

General product features:

  • For pumping demanding, high-viscosity media out of drums
  • Residual amounts in drum to less than 1 %
  • Mobile use
  • Small space requirement
  • Easy cleaning
  • Gentle pumping of the media
  • Easy to operate
  • Diverse control options
  • Motor stays attached to process device while cleaning the pump
  • Pumps with impulse sensor available for contact-free flow measurement

Anderson-Negele’s HM-series turbine flow meter is the solution for applications requiring an economical, accurate flow meter. Using the proven method of counting the rotation of a turbine within a flowing stream of liquid, the “HM” turbine flow meter is not merely a modification of an industrial design, but a design that was created specifically for the sanitary food and dairy industry. Understanding these requirements has produced a flow meter with superior durability in the unique applications found in that industry. An all 316SS construction (including rotor) coupled with a unique two piece design which eliminates the need for internal locking rings to retain the meters internals makes for a truly cleanable, hygienic design that also provides exceptional performance. Non-magnetic sensing of the 316SS rotor eliminates the drag other magnetically sensed rotors experience which provides for better metering accuracy and greater longevity. The HM can handle aggressive products such as acids, vinegar solutions, brine, and de-ionized water.

Technical data

Connections: Sanitary Clamp Connections

Construction: Body - 316 Stainless Steel

                     Rotor - 316 Stainless Steel (optional 17/4 PH)

                     Sleeve Bearing - Rulon 123

                     Gasket - Silicone Rubber

Maximum Product Temperature: 250°F(120°C)

Maximum Inlet Pressure: 115psi / 7.9 bar

Maximum Product Viscosity: 100 cps

Power Supply: 9-30 VDC

Signal Output: 10-22 VDC

Accuracy: ± 0.50% Over Entire Flow Range

Repeatability: ± 0.10%

Flow Rates: HM-100 - 7-70 GPM

                  HM-150 - 13-130 GPM

                  HM-200 - 25-250 GPM
