Flammable Kit

  • Branch: Industry
  • Branch: Surface technology
  • Branch: Petrochemistry
  • Branch: Agriculture
  • Branch: Paints and lacquers
  • Branch: Chemistry

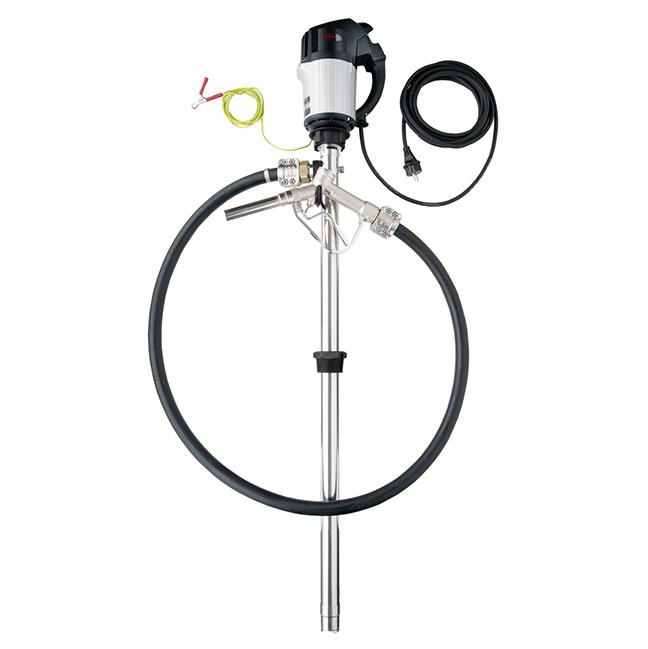

Pre-assembled pump kit to pump high flammable media out of 55 gal drums or IBCs. Comprising drum pump F 424, outer tube in stainless steel, hose, hand nozzle and compression gland. As drive either the commutator motor F 460 or compressed-air motor F 416 are available.
  • Application areas: Atex

Product attributes

  • No seal in the liquid area
  • Ex protected
  • Free from wear
  • Relief openings provide the same fluid level inside the pump compared to the drum content
  • Non-sensitive to dry-running
  • No seal wear
  • No bearing wear
  • No contamination of the medium from lubricants or wear of seal materials possible
  • Medium cannot be contaminated by lubricants
  • Low wear and maintenance
  • Built to last
  • For use in hazardous area

Benefits

  • Flow rate: max. 63 GPM (240 l/min)
  • Delivery head: 42 feet
  • Viscosity: min. 1 cPs - max. 800 cPs
  • Outer tube diameter: max. 43 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Stainless steel
  • Media/Fluids: Petroleum products, Highly flammable media, Solvents
  • Seal: sealless
  • Container: Drums, IBCs
  • Motor also available with speed control
  • Drum pump FP 424 Ex S-43/38 in stainless steel
  • Available with:
    Commutator motor F 460 Ex, 230 Volt, 50 Hz, 460 Watt (max. 13 GPM)
    Commutator motor F 460 Ex EL, 230 Volt, 50 Hz, 460 Watt, with speed control (max. 13 GPM)
    Compressed-air motor F 416 Ex, 470 Watt at 87 psi (max. 13 GPM l/min)
  • Universal hose DN 21, 2 m long
  • Hand nozzle stainless steel
  • Compression gland polypropylene conductive
  • Acetone
  • Petrol
  • Butanol
  • Ethanol
  • Toluene
