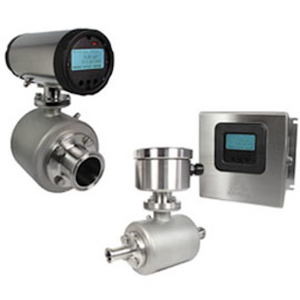

IZMAG Electromagnetic Flow Meter

The IZMAG is a full featured electromagnetic flow meter for sanitary and hygienic applications

Product attributes

  • ± 0.20% accuracy
  • Compact design fits challenging applications
  • Stainless steel housing suitable for all processing environments
  • 3-A compliant; Third party verified in accordance with standard 28-04

Building on the qualities that have made its predecessors the industry standard in accuracy and longevity, the Anderson-Negele IZMAG incorporates design and performance features that allow the IZMAG to excel in the most demanding sanitary processing environments.

From the outside the flow meter has a compact overall size allowing installation into tight fitting applications along with a variety of insertion lengths giving the IZMAG the ability to retrofit many existing applications without having to change the piping. An all stainless steel housing provides the highest level of protection from cleaning chemicals and environmental extremes present in food processing facilities. An integral or remote mounted signal converter has a standard backlit graphic display provides the metering information not only as numbers and text but also through graphical images. Interfaces include multiple pulse and analog outputs along with Ethernet IP digital communication. On the inside a PFA liner offers increases in pressure, temperature and vacuum capability. This liner gives the IZMAG the ability to satisfy an expanded list of high temperature and aseptic applications.

Technical data

Accuracy: ± .20% of rate* (* ± 1 mm/sec)

Flowrates: 0.14-1,200 GPM (0.53-4,667 LPM)

Process Temperature:

  • 32-212°F (0-100°C) integral electronics
  • 32-325°F (0-163°C) remote electronics

Ambient Temperature:

  • DC -12 – 130°F(-25-55°C)
  • AC -12 – 120°F(-25-45°C)

Pressure Rating: 1.4-145 PSIA (0.1 – 11 Bar Abs)

Liquid Requirements: 5 µS min. conductivity 15 µS/cm minimum for remote electronics

Approvals: ETL, CE, 3-A

Materials of construction: PFA 316L SS, EPDM, Silicone for temperature over 250°F, Viton

Enclosure Rating: IP 67

Process Connection Type: Tri-clamp®, Cherry I-line

Power Requirement:

  • 9-32 VDC 7W/V.A.
  • 100-240 VAC 50-60hz
  • -15% / + 10% 7W/V.A.

Signal Output:

  • (2) digital pulse output 24VDC @20 mA
  • (1) digital status output 24VDC @20 mA
  • (1) 4-20mA passive/active Optional 2nd 4-20mA w/Hart (passive)

Control Input: (1) 9-32 VDC R< 3.2kohms

Connections: (3) M16 ports with cord grips and ½” conduit adapters

Display: Graphic LCD 46 X23mm illuminated

Communications: Hart ver. 6, CS3 BUS Optional: Ethernet IP
