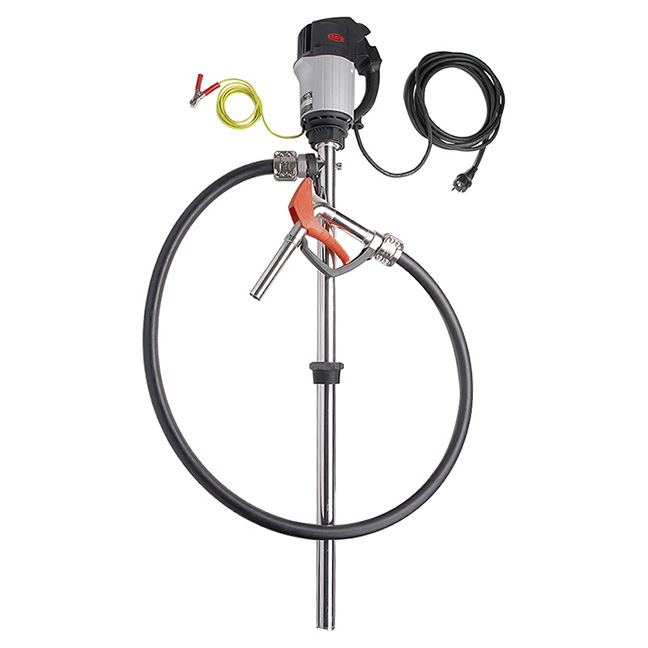

FLUX Pump Kit for Universal Applications









Available in 39" (1000mm) lengths for 55 gal (200L) drum and 47" (1200mm) for 275 gal (1000L) totes. Includes a F430 pump, outer tube in stainless steel, hose, hand nozzle and compression gland. Options for compressed air motor and electric motor (120V and 230V).
Product attributes
- Pump with mechanical seal
- Pump can be taken apart without tools into two parts
- Steel core in the inner tube prevents longitudinal changes at high or low temperatures
- Easy disassembly
- Universally and flexibyl applicable
- Easy to clean as no medium can get into the inner tube
- No carrying-over of the medium - one pump can be used for different media
- Also for adhesive media
- Also for liquids that crystallize or harden
Technical Data
- Flow rate: max. 63 GPM (240 l/min)
- Delivery head: max. 42 feet
- Viscosity: min. 1 cPs - max. 800 cPs
- Outer tube diameter: max. 41 mm
- Immersion length: 1000, 1200
- Materials outer tube: Stainless steel
- Media/Fluids: Petroleum products, Highly flammable media, Solvents, Fuels
- Seal: with mechanical seal
- Container: Drums, IBCs
- Kit components
- Drum pump F 430 S-41/38 in stainless steel
- Available with:
Commutator motor F 460 Ex, 230 Volt, 50 Hz, 460 Watt (max. 13 GPM)
Compressed-air motor F 416 Ex, 470 Watt at 6 bar (max. 13 GPM) - Universal hose DN 21, 2 m long
- Hand nozzle stainless steel
- Compression gland polypropylene conductive
