E3PH Motor

8-pole motor for F 500 S

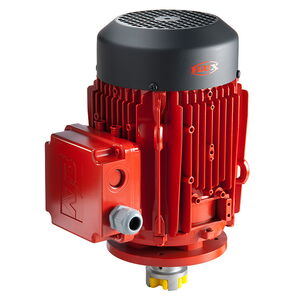

  • Motor DSM

Product attributes

  • Constant Speed
  • Very low noise output
  • Available in 700 or 930 RPM speeds
  • General purpose and wash down versions

The FLUX E3PH motor excels where three phase power is required, constant speed and low noise output. It is available with speeds of 700 or 930 rpm and a capacity of 0.75 or 1.1 kW. The motors are available with motor protection switch or cable terminal box as well as for use in wash down environments.







Technical data

  • Enclosure: IP 55, IP 66
  • Ventilation: External
  • Voltage: 230 V
  • Frequency: 50/60 Hz
  • Capacity: 800 – 1,100 W
  • Weight: 27 - 50 lbs (12.5 - 23 kg)
