Acid Kit

  • Branch: Industry
  • Branch: Surface technology
  • Branch: Petrochemistry
  • Branch: Agriculture
  • Branch: Water treatment
  • Branch: Paints and lacquers
  • Branch: Chemistry

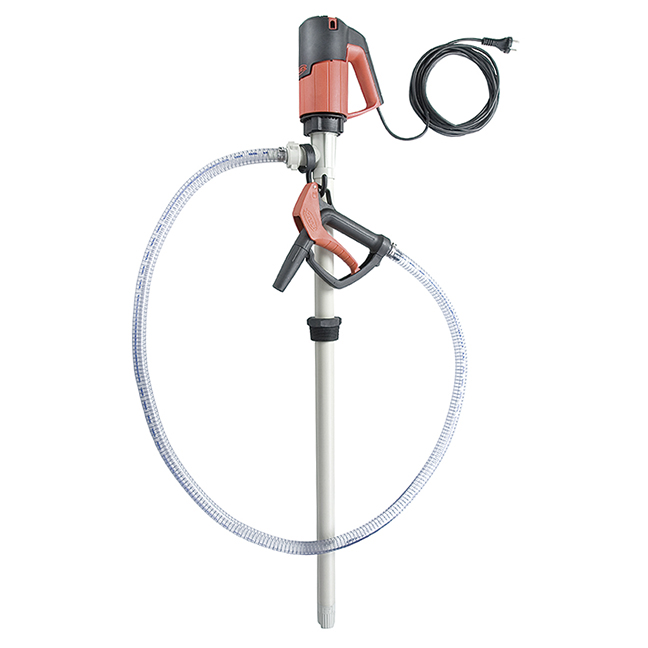

Pre-assembled pump kit to pump acids of 55 gal drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430 with mechanical seal, material outer tube polypropylene, commutator motor FEM 4070, hose, hand nozzle and compression gland.

Product attributes

  • Pump with mechanical seal
  • Pump can be taken apart without tools
  • Inner tube with steel core - prevents longitudinal changes at high or low temperatures
  • Easy disassembly
  • Universally and flexibly applicable
  • Easy to clean as no medium can get into to inner tube
  • No carrying-over of the medium - one pump can be used for different media
  • Also for adhesive media
  • Also for liquids that crystallize or harden

Benefits

  • Flow rate: max. 43 GPM (165 l/min)
  • Delivery head: max. 31 feet
  • Viscosity: min. 1 cPs - max. 600 cPs
  • Outer tube diameter: max. 40 mm
  • Immersion length: 1000, 1200
  • Materials outer tube: Polypropylene
  • Media/Fluids: Acids, Alkalis
  • Seal: mechanical seal
  • Container: Drums, IBCs
  • Available with:
    Drum pump F 430 PP-40/33 in polypropylene (PP) (max. 40 l/min)
    Drum pump F 424 PP-41/36 in polypropylene (PP) (max. 60 l/min)
  • Commutator motor FEM 4070, 230 Volt, 50 Hz, 500 Watt
  • PVC hose DN 19, 2 m long
  • Hand nozzle polypropylene (PP)
  • Compression gland polypropylene (PP) conductive
  • Boric acid
  • Fruit acids
  • Phosphoric acid (up to 50%)
  • Hydrochloric acid (up to 30%)
  • Sulfuric acid (up to 40%)
