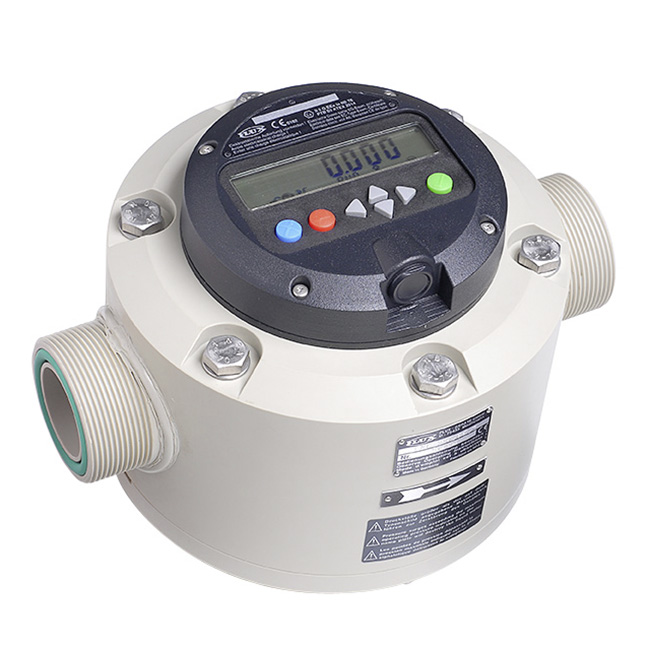

FMC 250

For stationary use in plant engineering

  • Branch: Industry
  • Branch: Surface technology
  • Branch: Petrochemistry
  • Branch: Agriculture
  • Branch: Water treatment
  • Branch: Paints and lacquers
  • Branch: Chemistry

FLUX flow meters FMC, built to nutating disc principle, are designed for the use with FLUX drum pumps or for the stationary application e.g. in piping systems. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and / or magnetic valve and the most different processes can be controlled.

Product attributes

  • Nutating disc principle
  • For low viscosity media
  • High measuring accuracy
  • Easy calibration
  • Signal transmission to evaluation unit
  • Accept signals with the FLUXTRONIC® or an external control unit such as a PLC
  • Version also available for hazardous area
  • Batch operation possible (automatic mode)
  • High resistance
  • Capable of handling solids
  • Easy handling
  • Simple assembly and maintenance
  • Models available for hazardous/ explosion proof applications

Benefits

  • Flow Rate: 6 - 66 GPM (25 - 250 l/min)
  • Measurement error in the flow rate: +/- 1.5%
  • Operating Pressure max: 87 PSI (6 bar)
  • Size of solids max: 1.5mm
  • Viscosity max: 2500 cPs
  • Material Housing: Polypropylene, Polyvinylidene fluoride (PVDF)
  • Fluids: Acids, Alkalis

FLUX Accessories
FLUXTRONIC Flow Meter

FLUX Flow Meters Overview VIDEO

Polypropylene Construction:
Battery acid, formic acid, ammonia, formic acid, boric acid, brake fluid, calcium chloride, acetic acid, ferric chloride, photo developers, glycol, mineral oil, sodium hydroxide, phosphoric acid, hydrochloric acid, sulfuric acid to 60 %, tartaric acid, Zinc chloride, citric acid

ETFE Construction:
Bromoacid, butylamine, chloroform, diethyl amine, ethyl acetate, essential oils, ethylene oxide, hydrofluoric acid to 40 %, aqua regia, nicotinic acid, nitrating acid to 70 %, petroleum ether, nitric acid (diluted), nitric acid (concentrated) sulfuric acid to 98 %, tetrahydrofuran, hydrogen peroxide
