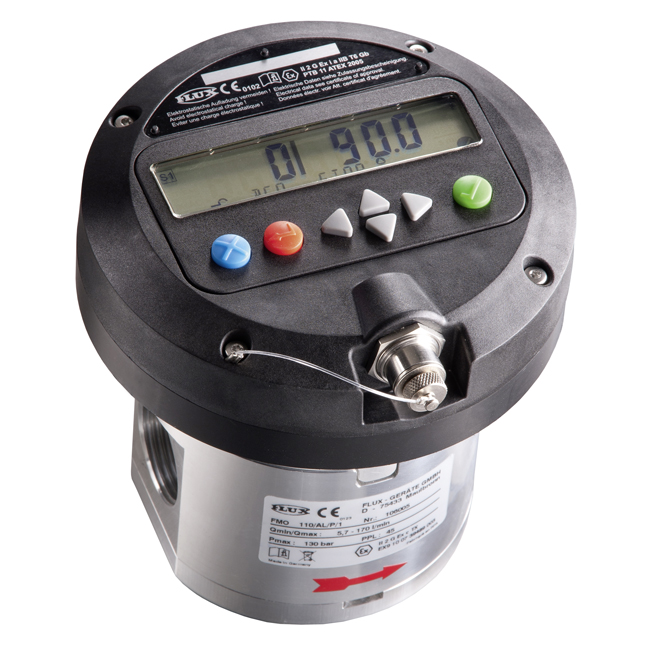

FMO 104

Flow meter for 0.52 - 6 GPM (2 - 25 l/min)

Branch: FoodBranch: Water treatmentBranch: AgricultureBranch: PetrochemistryBranch: PharmacyBranch: CosmeticsBranch: Surface technologyBranch: IndustryBranch: ChemistryBranch: Paints and lacquers
  • .

The FMO oval rotor flow meter is suitable for use with thin to highly viscous, clean liquids. With the FLUXTRONIC®, batching and dosing a wide variety of liquids can be performed with a high degree of accuracy and safety. In automatic mode it is possible to batch and meter.  For example, when paired with the FAE hand nozzle and FSV amplifier, one-touch batching with automatic shutoff is possible.

  • Application areas: Atex
  • Application areas: FDA

Product attributes

  • Oval rotor design
  • For thin to highly viscous pure media
  • Available with  integrated evaluation unit  FLUXTRONIC® or as impulse version
  • For the use in piping systems
  • High accuracy and repeat accuracy
  • Signal can be forwarded to FLUXTRONIC® or another external control as e.g. PLC
  • Can be displayed in liter, gallons or kilogram
  • Semi-automatic filling with a switching amplifier possible
  • Can be used for ex-applications in Zone 1
  • Very precise dosing possible
  • High resistancy
  • Wide range of viscosities can be covered
  • Can also be used for pulsating volume flows
  • Low pressure loss
  • Also available in Version with FDA CFR 21

Technical Data

  • Flow rate: 0.52 - 6 GPM (2 - 25 l/min)
  • Measurement error of flow rate < 5 cPs: 2%
  • Measurement error of flow rate > 5 cPs: 0.5%
  • Operating pressure max: AL: 1885 PSI S: 2900 PSI
  • Viscosity max: 500,000 cPs
  • Housing materials: Stainless steel, Aluminium
  • Fluids: Acids, Alkalis, Petroleum products, Highly flammable media, Solvents, Fuels
