FDM 10

For delivery rates up to 10 GPM (40 l/min)

Branch: ChemistryBranch: IndustryBranch: Surface technologyBranch: CosmeticsBranch: PharmacyBranch: PetrochemistryBranch: AgricultureBranch: Water treatmentBranch: Paints and lacquers
  • .

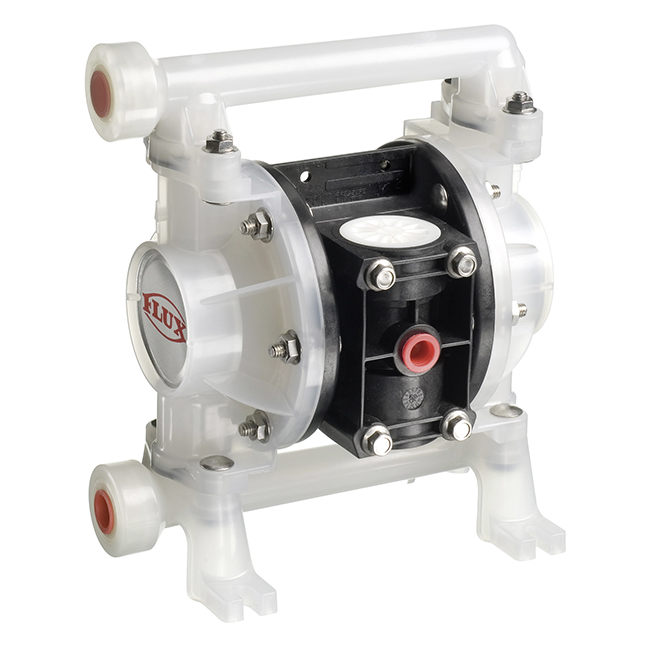

The FLUX air-operated diaphragm pump FDM 10 in injection-moulded version is self-priming and protected against dry running. The pump is distinguished for its versatility and can be used for pumping low to high viscosity media with solid particles, abrasive media, highly flammable media or liquids with high gas content.

  • Application areas: Atex

Product attributes

  • Moulded version
  • Self-priming even from a dry start
  • Variable delivery rates by adjusting air pressure to the pump
  • No need of by-pass control
  • Fully submersible
  • Unbalanced air valve design eliminates stalling
  • Oil-free operation
  • Regulating valve insensitive to foreign matter in the air
  • Suitable for dry run operation
  • Blockage-free, infinitely adjustable operation
  • Long service life
  • Free of wear
  • Service-friendly operation
  • Versions available for use in hazardous areas

Technical Data

  • Flow rate: max. 10 GPM (40 l/min)¹
  • Discharge pressure: max. 101 psi
  • Suction lift (dry): 13 ft (4 m)¹
  • Suction lift (wet): 24 ft (7.6 m)¹
  • Size of solids: max. 1.6 mm
  • Housing Materials: Polypropylene, Polyvinylidene flouride, Acetal conductive
  • Media/Fluids: Highly flammable media, Viscous media, Abrasive media, Aggressive media

1 dependent on pump model, operating pressure and medium

2 dependent on the flow behavior of the medium
