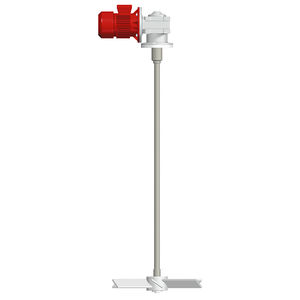

Low speed

For high circulation applications

FLUX mixers for dispersing, emulsifying, homogenising, chilling, dissolving, mixing, neutralising, stirring, circulating or exchanging heat efficiently can be used for container sizes from 7 to 7925 gallons.

The FLUX mixer program was consistently developed as a modular system. The drive motors are in correspondence with the IEC standard. The mixer shafts in lengths of 150 to 1800 mm are offered in stainless steel 316 L or with a coating in PVDF or PE and can thus be used for various types of liquids.

Benefits/Features

  • Circulating performance: up to 15850 gpm
  • Low speed: approx. 70 rpm
  • For fluids of up to a viscosity of 10000 cPs
  • With gear
  • Versions available with sliding or folding agitators
  • Can be used in tanks
  • For liquids with max. 10 % solids
  • For run-through systems with 10 – 40 fold flow per hour
