F430 Tote Pump

For dry installation / horizontal use

  • Branch: Industry
  • Branch: Surface technology
  • Branch: Petrochemistry
  • Branch: Water treatment
  • Branch: Paints and lacquers
  • Branch: Chemistry

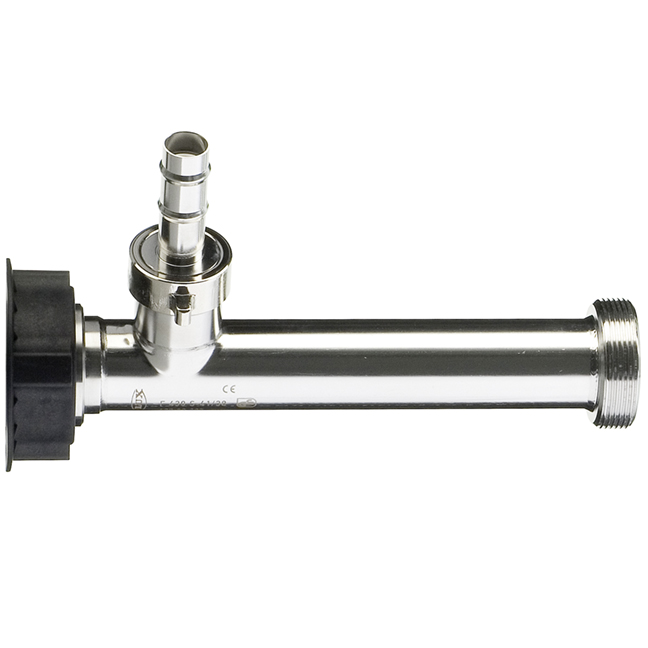

Horizontal pump F 430 TR is ideal for conveying media from IBCs, tanks and other containers with low level outlet. For example, if a tank is not accessible from the top, or if the spatial conditions do not allow use of a vertical pump. For cleaning, the pump can be quickly and easily disassembled into its two main components. The pump is available in stainless steel or polypropylene. The stainless steel version can also be used in hazardous areas.
  • Application areas: Atex

Product attributes

  • Can be used for numerous media
  • For containers with bottom outlet providing highest flexibility in fixed and portable installations
  • Utilizes a mechanical seal for sealing the inner tube
  • 200 mm long
  • Can be combined with various motors as required
  • Temporary operation against closed valve possible (hand nozzle, vall valve)
  • Versions for use in hazardous areas available
  • Grease-lubricated shaft bearing



Benefits

  • Flow Rate: max 63 GPM
  • Delivery Head: max 42 ft
  • Viscosity: < 1 - 1200 cPs
  • Outer Tube Diameter: 41 mm
  • Standard Immersion Lengths: 8 in (200 mm)
  • Materials of Construction: Polypropylene, Stainless Steel
  • Temperatures to 212°F (100°C)
  • Fluid Examples: Acids, Alkalis, Petroluem products, Flammables, Solvents, Fuels
  • Seal: mechanically sealed
  • Containers: Totes, IBCs

Polypropylene Outer Tube:
Hydrochloric acid, boric acid, sulfuric acid, citric acid, lactic acid, phthalic acid, sodium hydroxide, potassium hydroxide, ammonia water

Stainless Steel Outer Tube:
Petroleum, diesel, heating oil, hydraulic oil, machine oil, motor oil, gasoline, formic acid (as from 85 %), ethyl glycol, petroleum, "MEK (methyl ethyl ketone = butanone), octane, ethanol, methanol, butanol, acetan, toluene, isobutanol, propanol, xylene, urea solutions, white spirit, diesel

Electric motors
FEM 4070
Delivery rate max. 56 GPM
Delivery head max. 32 ft

F 457 / F 457 EL
Delivery rate max. 52 GPM
Delivery head max. 39 ft

F 458 / F 458 EL
Delivery rate max. 52 GPM
Delivery head max. 31 ft

F 460 Ex / F 460 Ex EL
Delivery rate max. 52 GPM
Delivery head max. 31 ft

F 458-1 / F 460-1 Ex
Delivery rate max. 58 GPM
Delivery head max. 39 ft

Brushless motor
FBM 4000 Ex
Delivery rate max. 58 GPM
Delivery head max. 36 ft

Three-phase motor
F 414
Delivery rate max. 48 GPM
Delivery head max. 36 ft

Air motor
F 416 Ex / F 416-1 Ex / F 416-2 Ex
Delivery rate max. 63 GPM
Delivery head max. 42 ft

The maximum delivery rate is a test bench value, measured with water at 20°C at the pressure port of the pump, without accessories (hose, nozzle, flow meter). The practically achievable delivery rate is lower. It depends on the individual application, the fluid properties and the pump configuration. Please refer to technical data sheets / performance diagrams.
