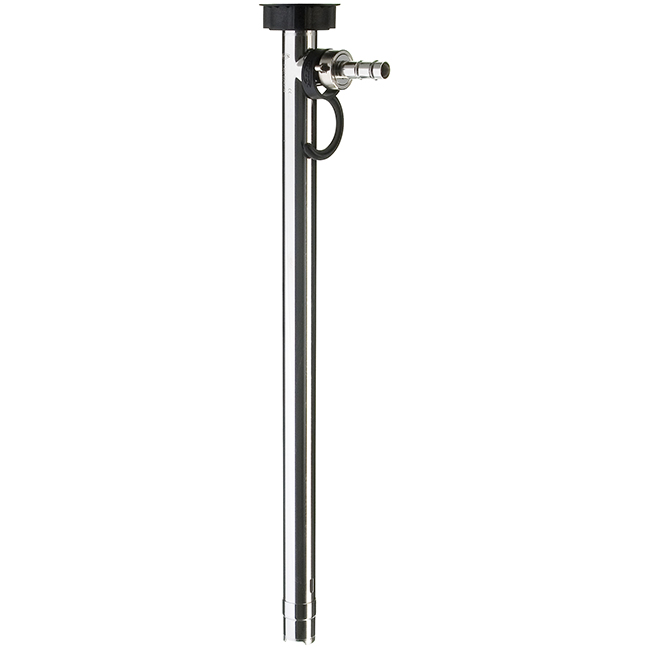

F427 Sanitary Pump
Can be taken apart completely
The pump F/FP 427 is ideal for hygienic applications and suitable for conveying media out of drums, totes, IBCs and other containers. It can be easily and quickly disassembled for cleaning / sterilization and can be completely stripped down to individual parts. The pump has minimal dead spots. The drive shaft, the inner and the outer tube are made of stainless steel (316 Ti resp. 1.4581). The pump is also available in FOOD/FDA and 3A Certified version and complies with international safety standards.
Product attributes
- Sealless in the liquid area
- Minimal dead spots
- Can be taken apart completely in only a few steps
- Disassembly with minimal tools possible
- Radial shaft seals prevent the introduction of vapors and liquid in the coupling area
- Simultaneous bearing of shaft and inner tube due to closed bearing
- Can be combined with various motors as required
Benefits
- Flow Rate: max 63 GPM
- Delivery Head: max 42 ft
- Viscosity: <1 - 1000 cPs
- Outer Tube Diameter: 43 mm
- Standard Immersion Lengths: 27, 39, 47 in (700, 1000, 1200 mm)
- Materials of Construction: Stainless Steel
- Temperatures to 212°F (100°C)
- Fluid Examples: Food, Beverages, Cosmetic Products, White Oils, Juices (also with pulp), Flavors, Fragrances, Edible Oils
- Seal: sealless
- Containers: 55 Gal Drums, totes, IBCs
