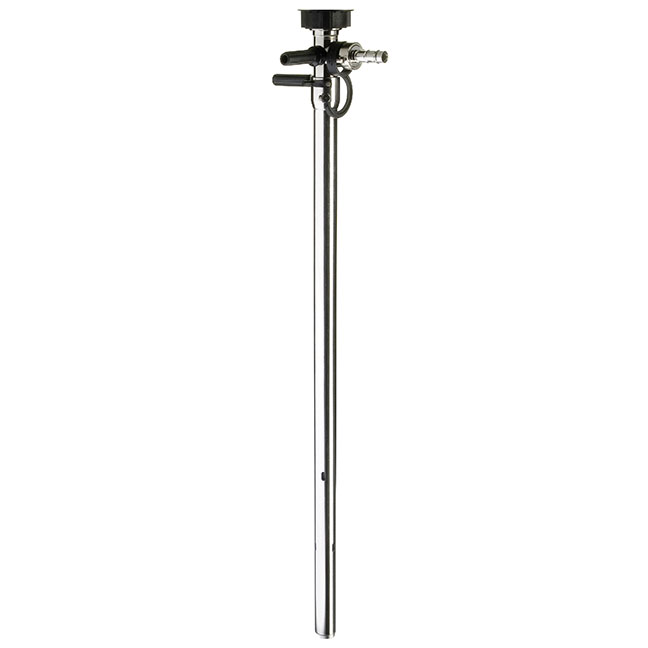

F426 Mixing Pump

For mixing and/or pumping

  • Branch: Industry
  • Branch: Surface technology
  • Branch: Petrochemistry
  • Branch: Agriculture
  • Branch: Water treatment
  • Branch: Paints and lacquers
  • Branch: Chemistry

The F426 is ideal for mixing and/or pumping fluids that have a tendency to settle out or separate over time, even during pumping. With the outlet closed, e.g. via a hand nozzle, the F426 can be temporarily operated as pure mixing pump. By turning the adjusting lever, the pump can be easily adjusted to "mixing" or "pumping". The pump is easy to dismantle for rapid cleaning. The pump is available in stainless steel and polypropylene. The stainless steel version can also be used in hazardous areas.


  • Application areas: Atex

Product attributes

  • 3 operating modes in one pump allow for mixing and pumping of liquids:
    - Conveying
    - Conveying with simultaneous mixing
    - Temporarily mixed operation
  • Two control levers to easily open/close  the mixing openings
  • Mixing openings allow backflow of medium for mixing back into the container
  • With mechanical seal
  • Inner tube with metal core at PP
  • Can be combined with various motors as required
  • Switching operating modes is possible even while operating
  • Easy to dismantle for cleaning
  • Versions for use in hazardous areas
  • Temporary operation against closed valve (e.g. hand nozzle, ball valve) is possible



Benefits

  • Flow Rate: max 63 GPM
  • Delivery Head: max 42 ft
  • Viscosity: <1 - 1200 cPs
  • Outer Tube Diameter: 40 mm - 50 mm
  • Standard Immersion Lengths: 39, 47, 60 in (1000, 1200, 1500 mm)
  • Materials of Construction: Polypropylene, Stainless Steel
  • Temperatures to 212°F (100°C)
  • Fluid Examples: Emulsions, 2 Phase Mixtures, Paints & lacquers, Acids, Alkalis, Solvents
  • Seal: mechanically sealed
  • Containers: 55 Gal Drums, totes, IBCs

Polypropylene Outer Tube:
Hydrochloric acid, boric acid, sulfuric acid, citric acid, lactic acid, phthalic acid, sodium hydroxide, potassium hydroxide, ammonia water

Stainless Steel Outer Tube:
Petroleum, diesel, heating oil, hydraulic oil, machine oil, engine oil, gasoline, formic acid (85 %), ethyl glycol, petroleum, "MEK (methyl ethyl ketone = butanone), octane, ethanol, methanol, butanol, acetan, toluene, isobutanol, propanol, xylene, urea solutions, white spirit, diesel

Electric motors
FEM 4070
Delivery rate max. 56 GPM
Delivery head max. 32 ft

F 457/ F 457 EL
Delivery rate max. 58 GPM
Delivery head max. 39 ft

F 458 / F 458 EL
Delivery rate max. 52 GPM
Delivery head max. 31 ft

460 Ex / F 460 Ex EL
Delivery rate max 52 GPM
Delivery head max. 31 ft

F 458-1/ F 460-1 Ex
Delivery rate max 58 GPM
Delivery head max. 39 ft

Brushless motor
FBM 4000 Ex
Delivery rate max. 58 GPM
Delivery head max. 36 ft

Three-phase gear motor
F 414
Delivery rate max. 48 GPM
Delivery head max. 36 ft

Air motor
F 416 Ex / F 416-1 Ex / F 416-2 Ex
Delivery rate max. 63 GPM
Delivery head max. 42 ft

The maximum delivery rate is a test bench value, measured with water at 20°C at the pressure port of the pump, without accessories (hose, nozzle, flow meter). The practically achievable delivery rate is lower. It depends on the individual application, the fluid properties and the pump configuration. Please refer to technical data sheets / performance diagrams.
