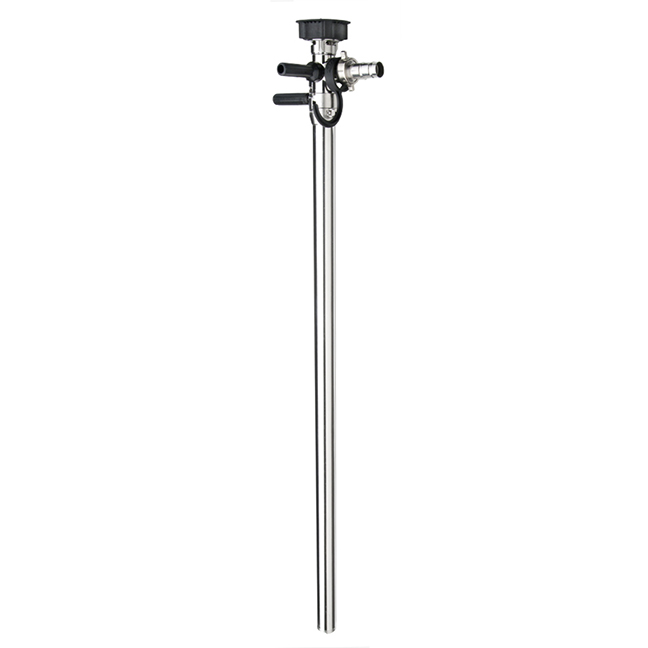

F425 Liquid Saver

Empties 99.98 % of fluid in drum

Branch: ChemistryBranch: IndustryBranch: Surface technologyBranch: CosmeticsBranch: PharmacyBranch: PetrochemistryBranch: AgricultureBranch: Water treatmentBranch: Paints and lacquers
  • .

When using the F/FP 425, you are able to pump out 99.98% of a 55 gal drum leaving less than 1% residual. The pump has an integrated foot valve that is easy to close before taking the pump out of the container. Thus the backflow of fluid in the pump is captured, preventing it from being left in the barrel. This can save huge dollars on expensive media and saves additional cleaning and disposal costs when handling hazardous chemicals. The pump is available in stainless steel, polypropylene and hastelloy C. Metallic constructed pumps can be used in hazardous areas.



  • Application areas: Atex

Product attributes

  • Two switch levers easily open/close the foot valve
  • Mechanically sealed, steel cored inner tube
  • Versions for use in hazardous areas available
  • Grease-lubricated shaft bearing
  • Can be combined with various motors as required
  • No tilting to totally empty the drum
  • Reduction of cleaning and waste disposal costs
  • No loss of medium when taking the pump from drum to drum
  • Can be temporarily operated against closed valve (hand nozzle, valves etc.)
  • Metallic versions for use in hazardous areas



Technical Data

  • Flow Rate: max 31 GPM
  • Delivery Head: max 85 ft
  • Viscosity: <1 -1200 cPs
  • Outer Tube Diameter: 41 mm - 50 mm
  • Standard Immersion Lengths: 27, 39, 47 in (700, 1000, 1200 mm)
  • Materials of Construction: Polypropylene, Stainless Steel, Hastelloy C
  • Temperatures to 212°F (100°C)
  • Fluid Examples: Acids, Alkalis, Petroluem products, Flammables, Solvents, Fuels, High Value Liquids
  • Seal: mechanically sealed
  • Containers: Small containers, 55 Gal Drums, totes
