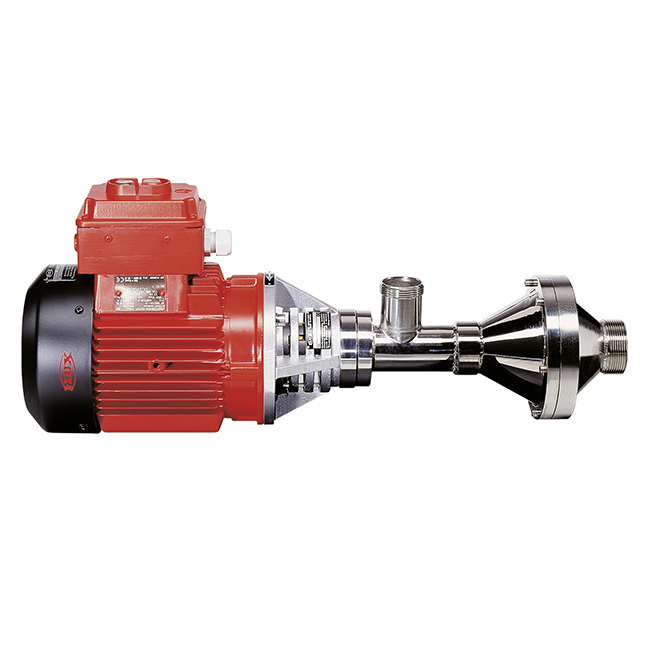

F 620 TR

For horizontal use

  • Branch: Industry
  • Branch: Surface technology
  • Branch: Petrochemistry
  • Branch: Water treatment
  • Branch: Paints and lacquers
  • Branch: Chemistry

For pumping and conveying of large quantities of heavy flammable liquids out of containers, tanks, open containers etc. The pump is used either horizontally mounted onto a base plate or fixed vertically.

Product attributes

  • For pumping large quantities of heavy flammable liquids
  • With console for dry installation
  • With threaded connection on inlet and discharge side
  • Consisting of an inner and outer tube as well as a drive shaft mounted in the inner tube
  • Shaft seal with mechanical sealsin ceramic oxide, O-rings made of FKM
  • Depending on the model, available with threaded or flanged connections at suction and discharge side
  • Can be used  horizontally or vertically
  • Pumps also fluids containing solids
  • Motor can be changed
  • Pump is hermetically sealed

Benefits

  • Flow rate: max. 101 GPM (383 l/min)¹
  • Delivery head: max. 39 ft (12 mwc)¹
  • Viscosity: min. 1 cPs - max. 2500 cPs¹
  • Diameter pump housing: max. 30 mm²
  • Diameter mounting flanges: max. 185 mm²
  • Materials outer tube: Stainless steel
  • Media/Fluids: Acids, Alkalis, Fuels
  • Seal: mechanical seal
  • Container: Tanks

1 dependent on pump model, motor and medium

2 dependent on pump model
  • Anodizing solution
  • Vegetable fibre suspension
  • Water-based lacquers
  • Alkaline pickling vats
  • Industrial effluent



Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
